NT28E-CatM1 Trailer Tracker

Products

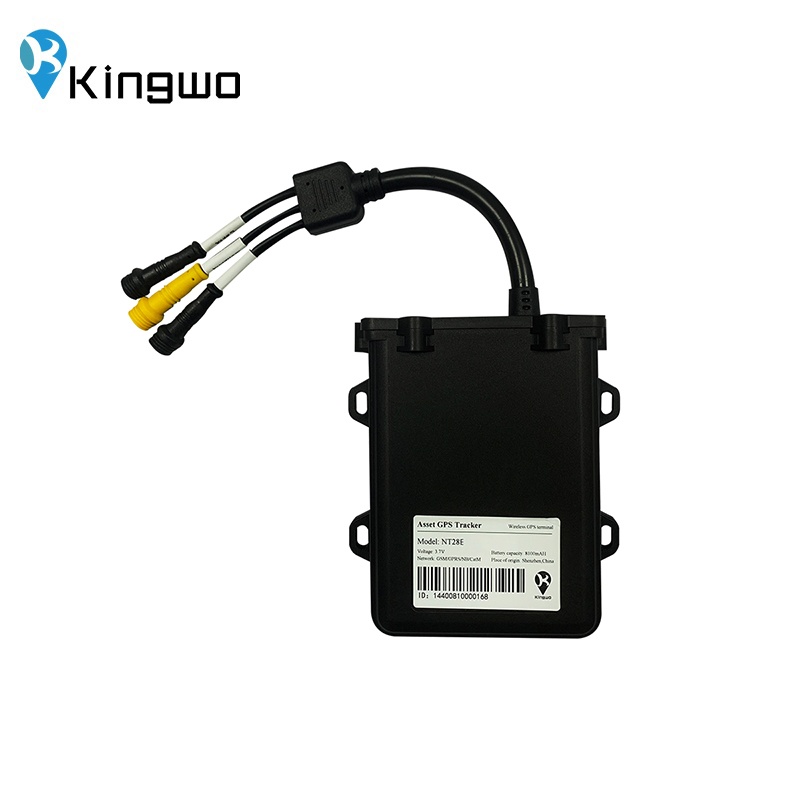

NT28E-CatM1 Trailer Tracker

Product No.:2022125102825

  • Details

NT28E is a special positioning product;Wired and wireless switchable;Built-in 5200mAh polymer lithium battery, real-time positioning under wiring;Support GPS,LBS,AGPS;2G/4G network avaliable;4G networks support Cat M : TDD LTE/ FDD LTE, 2G networks support GSM/GPRS.

Factory Customization
NT28E









NT28E_02

Characteristics

Description

Size

120mm*70mm*50mm

Voltage

DC9-36V, applicable to 12V/24V vehicles

Battery

Polymer lithium battery,Capacity 3.7V/5200mAH;

Working current

Average current <100mA@12V;

Sleep current

<15mA@12V

Recharge

Built-in Battery and support quick charge

Cellular

Working frequency:

NT28E
Cat M1: LTE-FDD B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B27/B28/B66/B85
Cat NB2: LTE-FDD B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28/B66/B71/B85
EGPRS: 850/900/1800/1900MHz
NT28G:
LTE-FDD:B1/B3/B5/B8;LTE-TDD:B34/B38/B39/B40/B41
GSM: 900/1800MHz

protocol: Embedded TCP/IP stack

Sensitivity:    -107dBm@850/900MHz

-106dBm@1800/1900MHz

Output power:  Class 4 (2W)@850/900MHz

Class 1 (1W)@1800/1900MHz

GPRS data: GPRS Class 10, Mobile Station Class B

GPS

Support GPS, AGPS and LBS

Antenna type

Built in Cellular ,GPS antenna,

I/O interface

2 inputs, 1 output

AD interface

2 ADC inputs, input voltage 0-5V

UART

2 RS232 and 1 RS485 interface

LED Indicator

Cellular, GPS, battery

Remote upgrade(FOTA)

Support remote configuration and firmware upgrade

Multiple IP

Support multiple IPs connecting at same time

Dimension

120mm*70mm*50mm

Environment

Working temperature:-20℃~70℃;

Storage temperature:-40℃~+85℃;

IP rating

IP68

NT28E_03

04

05

F&Q

Q1:Can you help for design?
A:Yes,we have our own software and hardware engineer,you can give your idea to us,we can assist the design work.Provide sample for your reference.

Q2:Are you manufacturer?
A:Yes, we are manufacturer for GPS Tracker with more than 10 years experience

Q3:What's your payment terms?
A:We accept payment by Visa Card, Master card, Alipay, Wechat Wallet, Paypal and Bank Transfer T/T.

Q4:What is your delivery time?
A: Immediate shipment for sample order and 3-15days for bulk order.

Q5:Do your have your own platform?
A.Yes, we have our own platform and mobile app.It's named itracksense.com and app named Track sense.

Q6:How do you make our business long-term and good relationship?
A:1.We keep good quality and competitive price to ensure our customers benefit;
2.We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
