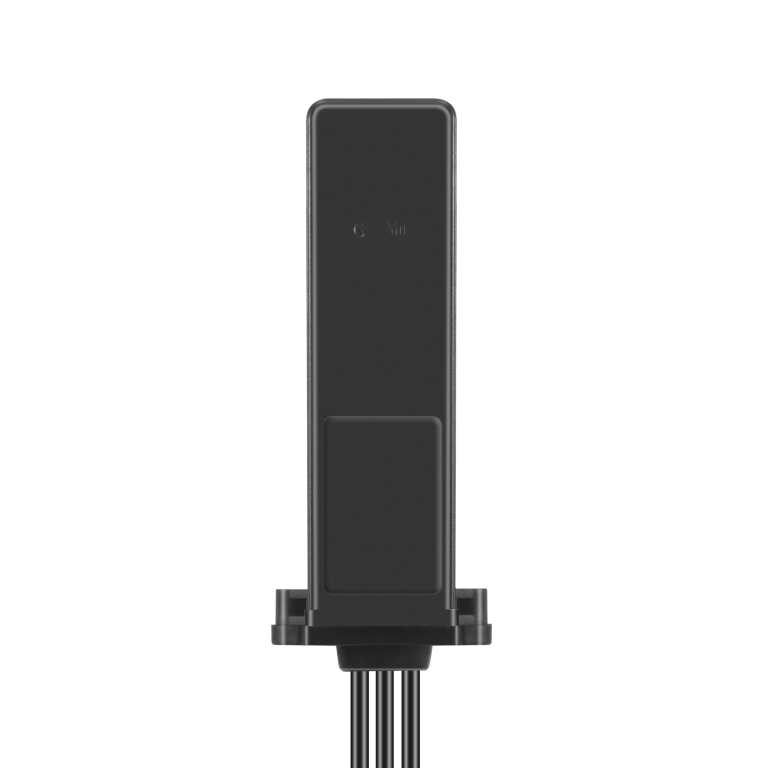

The NT52 series is a rugged IP67 4G/LTE-M tracker for fleet management. They feature an expandable CAN port for vehicle data and driver behavior analysis, with a wide voltage input of 9-100V and GPS & LBS positioning over 4G & 2G networks.
A reliable positioning solution that leverages both satellite and terrestrial technologies.
Offers various band versions for different regions, ensuring flexible deployment and reliable connectivity.
Advanced waterproof and dustproof for reliable operation in wet and harsh conditions.
9-100V DC input range ensures reliable operation in various vehicles or machinery.
Monitors harsh driving and provides alerts with behavior analysis for fleet safety.
Features 1 standard CAN port, expandable to 2 for flexible vehicle data integration.
| GNSS | |
| Positioning system | GPS, LBS with AGPS |
| Frequency | GPS L1: 1575.42 MHz |
| Positioning accuracy | 5-10 m (5m CEP) |
| Tracking sensitivity | -162 dBm |
| Acquisition sensitivity | -148 dBm |
| TTFF (open sky) | Avg. cold start ≤ 35 sec Avg. hot start ≤ 2 sec |
| Cellular | |
| Communication network | LTE-M/NB-IoT/4G Cat1 + GSM |
| Frequency | NT52E GSM: 850, 900, 1800, 1900 MHz LTE-M: B1, B2, B3, B4, B5, B8, B12, B13, B14, B18, B19, B20, B25, B26*, B27, B28, B66, B71 NB-IoT: B1, B2, B3, B4, B5, B8, B12, B13, B14, B85 (* Under Development ) NT52U (Europe & Oceania) LTE Cat1: B1, B3, B5, B7, B8, B20, B28 GSM: 850, 900, 1800, 1900 MHz NT52D (Latin America) LTE Cat1: B2, B3, B4, B5, B7, B8, B28, B66 GSM: 850, 900, 1800, 1900 MHz |
| Power | |
| Battery | 300 mAh rechargeable Li-poly battery |
| Input voltage | 9-100V DC |
| Battery protection | 200V reverse connection protection, main power voltage detection |
| Operating current | Active < 30 mA @ 12V DC Sleep < 5 mA @ 12V DC |
| Working modes | Motion & Static Auto-Switch |
Fleet telematics solutions enable government agencies and public service operators to monitor, manage, and optimize vehicle fleets with greater transparency and control. By supporting real-time location tracking, vehicle status monitoring, and data-driven reporting, these solutions help improve operational efficiency, ensure regulatory compliance, and enhance public safety across diverse service fleets.
The mining industry uses heavy machinery like excavators, trucks, and drills in harsh conditions, facing high maintenance costs and downtime risks. Kingwo IoT enables real-time monitoring of equipment status, location, and key metrics, supporting predictive maintenance, optimized resource use, and improved productivity.
