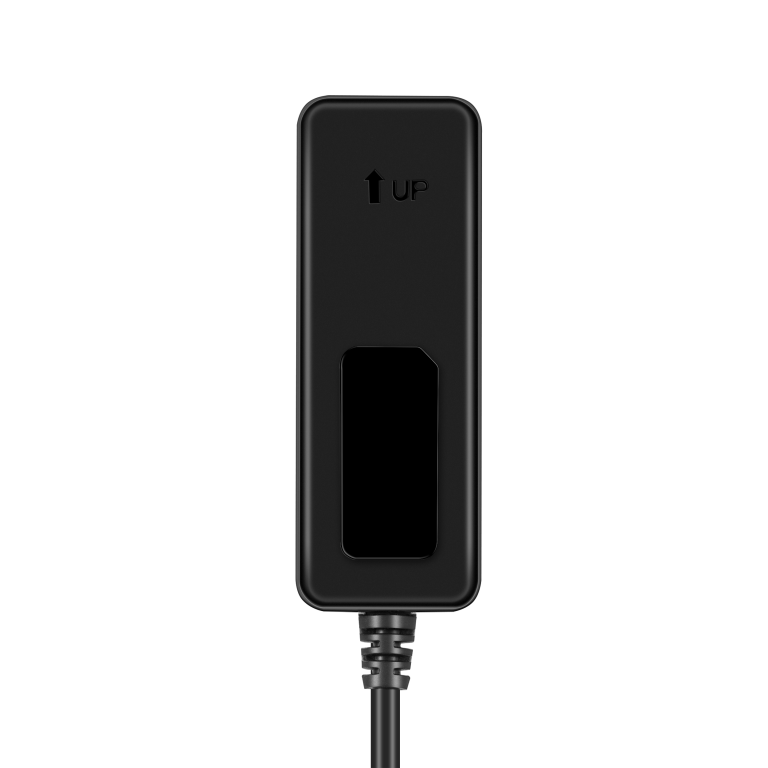

LT02G is a compact, wired 4G mini tracker for fleet management. With a wide voltage input of 9 to 100V, it provides GPS & LBS positioning across major Asian 4G networks, plus motion detection, geo-fence alerts, and mileage calculation for real-time monitoring.
A reliable positioning solution that leverages both satellite and terrestrial technologies.
9-100V DC input range ensures reliable operation in various vehicles or machinery.
Compatible with major Asian 4G networks, supporting both FDD and TDD standards across multiple bands.
Built-in G-sensor supports vibration alerts and driving behavior analysis.
Configurable virtual zones to provide immediate notification of boundary crossing.
Support mileage calculated based on GPS and report to the backend.
| GNSS | |
| Positioning system | GPS, LBS with AGPS |
| Frequency | GPS L1: 1575.42 MHz |
| Positioning accuracy | 5-10 m (5m CEP) |
| Tracking sensitivity | -162 dBm |
| Acquisition sensitivity | -148 dBm |
| TTFF (open sky) | Avg. cold start ≤ 35 sec Avg. hot start ≤ 2 sec |
| Cellular | |
| Communication network | 4G LTE |
| Frequency | TDD LTE: B34, B38, B39, B40, B41 FDD LTE: B1, B3, B5, B8 |
| Power | |
| Battery | 60 mAh 3.6 V rechargeable Li-poly battery |
| Input voltage | 9-100V DC |
| Battery protection | 200V reverse connection protection, main power voltage detection |
| Operating current | Active < 30 mA @ 12V DC Sleep < 5 mA @ 12V DC |
Fleet telematics solutions enable government agencies and public service operators to monitor, manage, and optimize vehicle fleets with greater transparency and control. By supporting real-time location tracking, vehicle status monitoring, and data-driven reporting, these solutions help improve operational efficiency, ensure regulatory compliance, and enhance public safety across diverse service fleets.
The mining industry uses heavy machinery like excavators, trucks, and drills in harsh conditions, facing high maintenance costs and downtime risks. Kingwo IoT enables real-time monitoring of equipment status, location, and key metrics, supporting predictive maintenance, optimized resource use, and improved productivity.
