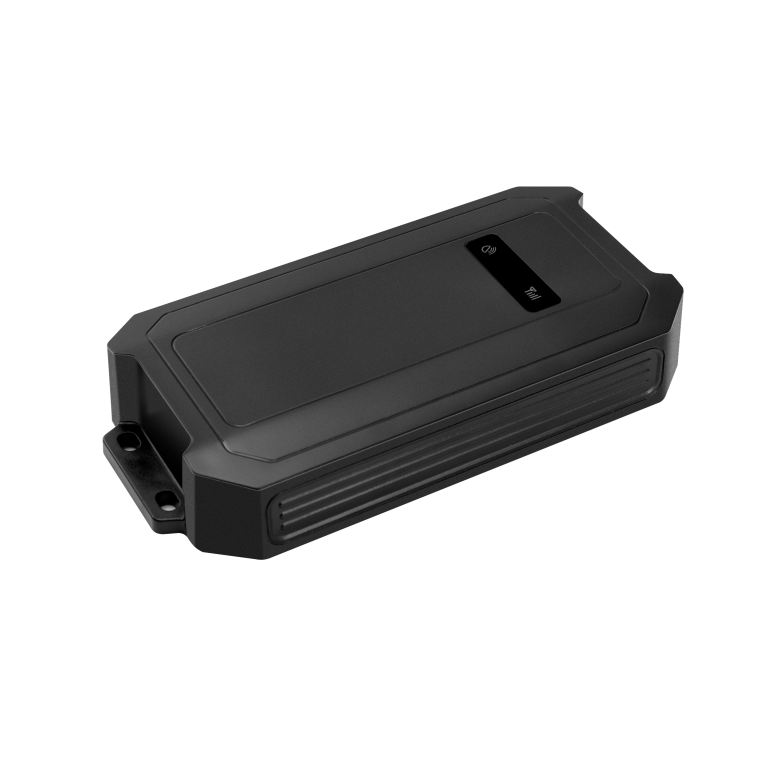

The NT09 series 4G/LTE-M high-capacity rechargeable trackers are a rugged, IP65-rated solution for demanding asset and vehicle monitoring. They are centered on a fast-charging 12,000mAh battery and provide GPS, LBS, and Wi-Fi positioning over 4G & 2G networks.
A reliable positioning solution that leverages both satellite and terrestrial technologies.
Built-in 12,000 mAh battery with USB-C fast charging (10W) for extended use and quick power-ups.
Installs securely in minutes with strong magnets and backup screws, no wiring required.
Rugged, reliable design for steady outdoor performance.
Automatically triggers an alert if exposed to light, preventing unauthorized removal.
Supports iBeacon broadcasting and gateway mode.
| GNSS | |
| Positioning system | GPS, LBS, Wi-Fi with AGPS (50 channels) |
| Frequency | GPS L1: 1575.42 MHz, C/A Code |
| Positioning accuracy | 5-10m (5m CEP) |
| Tracking sensitivity | -162 dBm |
| Acquisition sensitivity | -148 dBm |
| TTFF (open sky) | Avg. cold start ≤ 35 sec Avg. hot start ≤ 2 sec |
| Wi-Fi | 2.4 GHz, used for indoors tracking |
| Cellular | |
| Communication network | LTE-M/NB-IoT/4G Cat1 + GSM |
| Frequency | NT09E LTE-M: B1, B2, B3, B4, B5, B8, B12, B13, B14, B18, B19, B20, B25, B26*, B27, B28, B66, B71 NB-IoT: B1, B2, B3, B4, B5, B8, B12, B13, B14, B85 (* Under Development ) GSM: 850, 900, 1800, 1900 MHz NT09U (Europe & Oceania) LTE Cat1: B1, B3, B5, B7, B8, B20, B28 GSM: 850, 900, 1800, 1900 MHz NT09D (Latin America) LTE Cat1: B2, B3, B4, B5, B7, B8, B28, B66 GSM: 850, 900, 1800, 1900 MHz |
| Power | |
| Battery | 20000 mAh 3.6 V disposable lithium-ion battery |
| Self-discharge rate | < 1% per year (storage temperature < +25℃) |
| Operating current | Active < 100 mA Sleep < 15 uA |
| Working modes | Periodic Mode, Clock Mode, Week Mode, Motion & Static Mode, Warehouse Mode, Tracking Mode |
Fleet telematics solutions enable government agencies and public service operators to monitor, manage, and optimize vehicle fleets with greater transparency and control. By supporting real-time location tracking, vehicle status monitoring, and data-driven reporting, these solutions help improve operational efficiency, ensure regulatory compliance, and enhance public safety across diverse service fleets.
The mining industry uses heavy machinery like excavators, trucks, and drills in harsh conditions, facing high maintenance costs and downtime risks. Kingwo IoT enables real-time monitoring of equipment status, location, and key metrics, supporting predictive maintenance, optimized resource use, and improved productivity.
